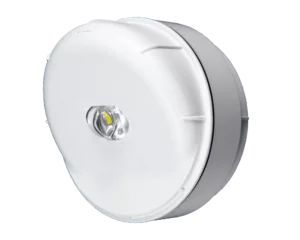

The Protec 6000/VAD/W addressable wall mounted visual alarm device is a loop driven, addressable high intensity VAD designed to EN54-23.
The device is catagorised for installation at a height of up to 2.4m and room coverage of 7.5m x 7.5m (W-2.4-7.5).
For smaller areas, the device can be switched down from 7.5m to 5m or 3m thus reducing power consumption and maximising the number of devices on the loop. The low power modes are software programmable.
The product has a unique lens that distributes the white light in a cuboid shape to achieve the required illumination of 0.4lux over the entire coverage area in accordance with EN54-23.
The design is based on LED technology for long life, reliability and low power consumption.
The 6000/VAD/W has a Type B (IP33C) + IP65 rating making the product suitable for mounting internally or externally.
Compliant with DDA legislation, this high intensity led VAD warns those with hearing impairments or in noisy environments.
This device is available in a white or red housing with a white flash rate of 1 or 0.5Hz.
| Environment | -10 to 50ºC, 95% R.H (non condensation or icing) |
| Ingress Protection | Type B (IP33C) + IP65 |
| Weight (excluding base) | 125g |
| Loop Powered | Yes |
| Voltage | 18 – 28V |
| Loop Standby Load | 0.8mA |
| Peak Loop Alarm | 19mA |
| Mounting Height (x) | 2.4 metres |
| Coverage (y) | 7.5m adjustable to 5m or 3m |
| Coverage Volume Code | W-2.4-7.5 |
| Flash Rate | 1 or 0.5Hz white flash |
| Isolator | Yes |
| Dimensions (mm) | Ø96 x 68(D) |
| Relevant Standard | EN54 Part 17 & 23, AS7240 Part 23 |
